六条主产品线加多类耐磨件，覆盖高炉炉顶、风口、烧结、球团、检修等高温重载关键部位。所有参数均来自实际在线使用记录。 Six main product lines plus a range of wear parts, covering furnace tops, tuyeres, sintering, pelletizing and maintenance. All figures come from actual in-service records.
烧穿、变形、衬板脱落、内凹磨损、密封失效、偏载——先定位问题，再定材料与结构。点进任一产品可看到完整技术方案与现场业绩。 Burn-through, distortion, liner detachment, concave wear, seal failure, eccentric loading — we locate the problem first, then define material and structure. Open any product for the full technical approach and field record.
高炉最关键的炉顶设备。2006 年起五代迭代，行业唯一适应超高温工况长期安全稳定运行，并能优化布料矩阵助力增产降焦比。 The most critical furnace-top component. Five generations since 2006 — the industry's only chute in safe, stable long-term service under ultra-high temperature duty, able to optimise the charging matrix.
防烧 · 耐磨 · 抗弯 · 节能。等离子喷涂高温热障耐磨涂层，四项改进分区域解决烧损、磨损、变形与热损失。 Burn-, wear- and distortion-resistant, and energy-saving. A plasma-sprayed thermal barrier coating plus four zoned improvements address burning, wear, bending and heat loss.
篦板、单辊转子、导槽体、下料斗四部分整体长寿化。最高工况 950℃，堆焊层 800℃ 下仍保持 HRC60 以上。 Grate plates, rotor, guide chute and hopper upgraded as one system. Up to 950 ℃ service; the overlay retains HRC60+ at 800 ℃.
行业唯一包保 3~6 年，膨润土低添加、零增加。六大核心技术覆盖柱钉长寿化、内凹控制、磨损同步、防坑洼、防塌边与现场修复。 The industry's only HPGR guaranteed 3–6 years, with low bentonite addition and zero increase. Six core technologies cover studs, concavity, wear sync, pitting, edges and on-site repair.
负载均衡 · 密封可靠 · 润滑无忧。五大核心技术解决台车变形导致的轴承偏载、密封失效与润滑不良。 Balanced load, reliable sealing, dependable lubrication. Five core technologies counter the eccentric loading, seal failure and poor lubrication caused by pallet car distortion.
安全可靠 · 快速装卸 · 承重量大 · 变径快捷。机动伸缩变径，平台上可集成专用或自动设备，替代传统数天搭建。 Safe, quick to handle, high in capacity and rapid to adjust. Powered diameter change and mountable equipment replace days of scaffolding.

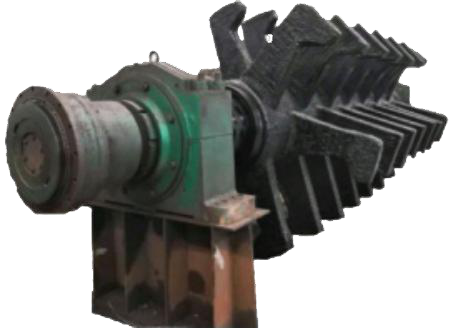

单辊破碎机系统包括篦板、单辊转子、导槽体及下料斗（含环冷机给料溜槽）四部分。工况温度最高可达 950℃，过料量大、矿料冲砸严重，常见问题是寿命短、更换频繁。只有同时具备耐高温、耐磨、抗冲击三项特性，才能真正降低检修频次。 The single-roller crusher system comprises grate plates, the rotor, the guide chute body and the hopper (including the ring-cooler feed chute). Service temperature reaches 950 ℃ with heavy throughput and severe ore impact, so short life and frequent replacement are the norm. Only heat resistance, wear resistance and impact resistance together can genuinely reduce maintenance frequency.
| 部件Component | 耐磨寿命Wear life | 说明Notes |
|---|---|---|
| 篦板Grate plate | 单边 12–18 月 / 双边 24 月以上12–18 mo single side / 24 mo+ both sides | 篦板无需通水No water cooling required |
| 单辊转子Single-roller rotor | 18–36 月18–36 months | 堆焊材料 800℃ 下硬度保持 HRC60 以上Overlay retains HRC60+ at 800 ℃ |
| 导槽体Guide chute body | 3 年以上3 years+ | 采用深集料形式，避免硬碰硬冲击Deep-collection design avoids direct hard impact |

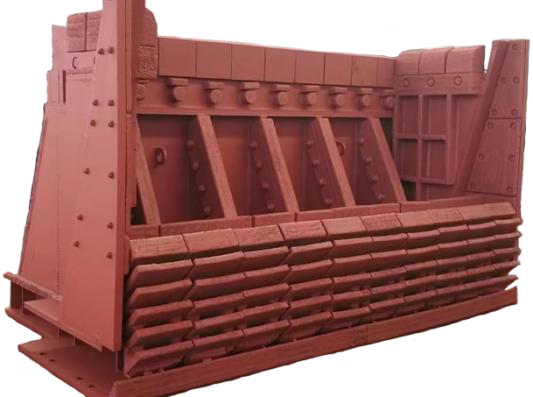

| 下料斗及环冷机给料溜槽Hopper & ring-cooler feed chute | 3 年以上3 years+ | 配合内部高耐磨耐高温挡料块与刮料块With high-wear, high-temperature baffles and scrapers |

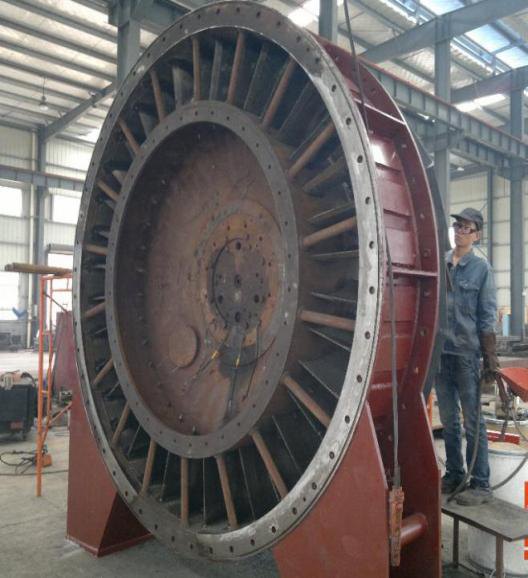

除主产品线外，我们也承接风机叶轮耐磨增强、中心喉管、翻板溜槽、强混耐磨件等抗磨损技术服务。工况特殊的部位欢迎直接联系。 Beyond the main lines we take on fan impeller wear enhancement, central throat pipes, flap chutes, intensive-mixer wear parts and related anti-wear services. For unusual conditions, contact us directly.
五项核心技术：专用防磨材料、硬面薄层全堆焊（隔层工艺将熔深控制在 1mm 以内，阻隔表面裂纹不延展到基体）、基体应力释放控制、基体强度控制、变形控制。 Five core technologies: dedicated anti-wear material; thin-layer full hard-facing with an interlayer process holding penetration under 1 mm so surface cracks never reach the substrate; substrate stress-release control; substrate strength control; and deformation control.
并罐式无钟炉顶的关键过料通道，承受高落差料流的持续冲刷。采用与溜槽同源的耐高温耐磨材料体系。 The critical burden passage in parallel-hopper bell-less tops, continuously scoured by high-drop material flow. Built from the same high-temperature wear-resistant material system as our chutes.
按工况定制耐磨结构与材料复合方案，适应冲刷、腐蚀、冲击等不同磨损机理。更多耐磨产品及方案欢迎来电咨询。 Wear structures and composite material solutions tailored to each duty, covering erosion, corrosion and impact wear mechanisms. Call us for more products and solutions.
耐磨件的方案取决于具体磨损机理。把部位、温度区间、当前寿命和失效形式告诉我们，我们按工况给方案。 Wear solutions depend on the specific wear mechanism. Send us the component, temperature range, current life and failure mode, and we will propose a solution matched to your conditions.
